產品簡介

ELM10-16.000MHz-8-R60-2-D20-T,ELM10,16MHz,2520mm,AEL品牌，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM10系列，產品編碼為：ELM10-16.000MHz-8-R60-2-D20-T，頻率為：16.000MHz，工作溫度范圍：-40℃至+85℃，頻率穩定性：±20ppm，頻率容差：±20ppm，負載電容：8pF，小體積晶振尺寸：2.5x2.0mm封裝，四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，SMD晶振，無鉛環保晶振。具有超小型晶振，輕薄型晶振，高性能晶振，高品質晶振，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，安防設備等應用。

產品詳情

ELM10-16.000MHz-8-R60-2-D20-T,ELM10,16MHz,2520mm,AEL品牌，產品特點：

SMD石英晶體諧振器

公差：±15ppm可用2520晶振

工作溫度0°C至+50°C至-40°C至+125°C

ELM10-16.000MHz-8-R60-2-D20-T,ELM10,16MHz,2520mm,AEL品牌,參數表

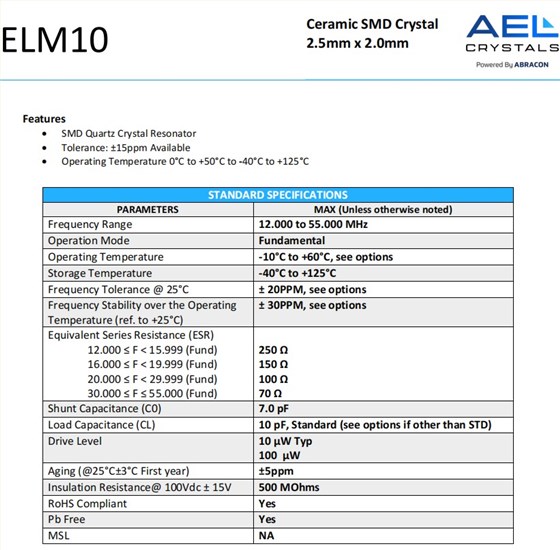

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

16.000MHz

Operation Mode

Fundamental

Operating Temperature

-10°C to +60°C, see options

Storage Temperature

-40°C to +125°C

Frequency Tolerance @ 25°C

± 20PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 30PPM, see options

Equivalent Series Resistance (ESR)
12.000 ≤ F < 15.999 (Fund)
16.000 ≤ F < 19.999 (Fund)
20.000 ≤ F < 29.999 (Fund)
30.000 ≤ F ≤ 55.000 (Fund)

250Ω
150Ω
100Ω
70Ω

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

10 pF, Standard (see options if other than STD)

Drive Level

10 μW Typ
100 μW

Aging (@25°C±3°C First year)

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

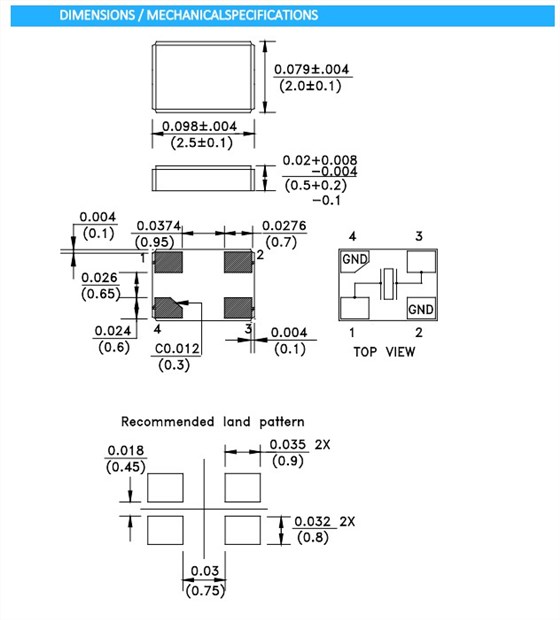

ELM10-16.000MHz-8-R60-2-D20-T,ELM10,16MHz,2520mm,AEL品牌,尺寸圖

產品編碼	晶振廠家	型號	頻率	負載電容	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF	2mm	1.6mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF	1.6mm	1.2mm	0.4mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	ELM8	12 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	ELM8	12.5829 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	ELM8	14.8 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	ELM8	18.432 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	ELM8	24 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	ELM8	24 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	ELM8	24 MHz	9 pF	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	ELM8	26 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	ELM8	32 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	ELM8	32 MHz	9 pF	3mm	2.5mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	ELS05	32.768 kHz	9 pF	1.6mm	1mm	0.5mm
ELS06-32.768kHz-9-T	AEL晶振	ELS06	32.768 kHz	9 pF	2mm	1.2mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	ELS07	32.768 kHz	6 pF	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	ELS07	32.768 kHz	12.5 pF	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	ELS13	32.768 kHz	7 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	ELS13	32.768 kHz	9 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	ELS13	32.768 kHz	12.5 pF	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	ELS25	32.768 kHz	6 pF	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	ELS25	32.768 kHz	12.5 pF	8mm	3.8mm	2.4mm
